铸铁闸门常适用于取水输水、市政建设，给水排水、农田灌溉等工程中，通常设置在渠道、涵管的进水口处。属于工作闸门的一种，用来调节流量、控制水位，或用作检修门关闭孔口挡水。

　　Cast iron gate is often used in water intake and conveyance, municipal construction, water supply and drainage, farmland irrigation and other projects. It is usually set at the inlet of channel and culvert pipe. The utility model belongs to a kind of service gate, which is used to regulate the flow, control the water level, or as the water retaining of the closing orifice of the maintenance gate.

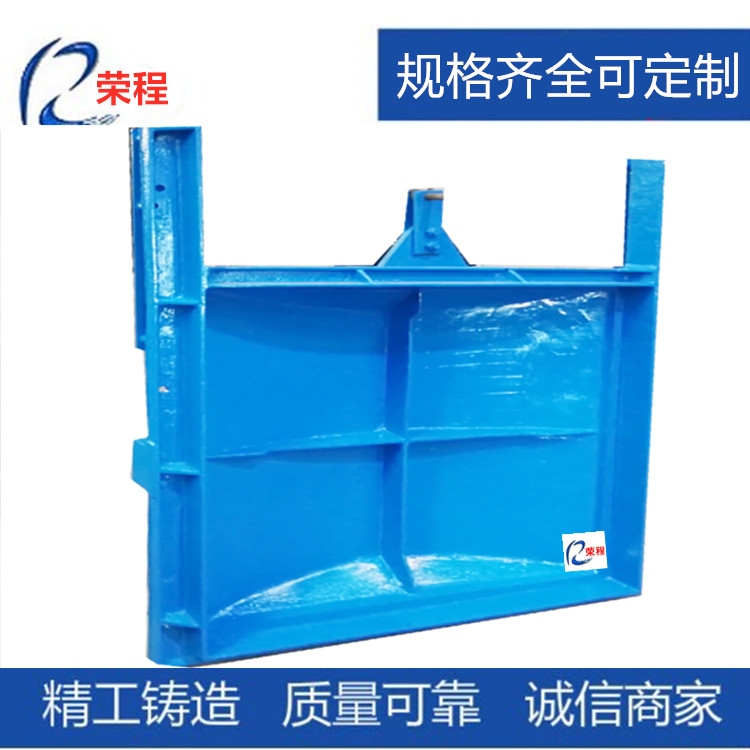

铸铁闸门的门体和门框上分别设置有可调节的楔紧装置，楔紧副(如楔块与楔块、楔块与偏心销等)，可使得闸门关闭时门板紧贴门框，达到止水要求。方形铸铁铸铁通常配置手动或电动螺杆式启闭机，用于操作闸门的门体启闭。铸铁闸门由门叶和门框两部分组成，门体和门框的材为铸铁，一般整体铸造、整体加工。

The gate body and frame of the cast iron gate are respectively provided with adjustable wedging devices, and the wedging pairs (such as wedges and wedges, wedges and eccentric pins, etc.) can make the gate plate close to the gate frame when the gate is closed, so as to meet the water stop requirements. Square cast iron is usually equipped with manual or electric screw hoist, which is used to operate the gate body. Cast iron gate is composed of gate leaf and gate frame. The gate body and gate frame are made of cast iron and generally cast and processed as a whole.

门体一般采用面板与加强肋的结构，面板可做平面或拱形。门体一般整体铸造和机加工，但尺寸较大的可采用分块组成式。门体上一般采用整体式金属止水，兼作支承滑块，金属止水用同材料制作的沉头螺钉紧固在门体上螺钉头部与止水工作面一起精加工，而一些尺寸较大的闸门也可采用“P”形橡皮止水。

The door body generally adopts the structure of panel and reinforcing rib, and the panel can be plane or arch. The door body is generally cast and machined as a whole, but the larger size can be divided into blocks. Generally, the integral metal water stop is used on the door body, which is also used as the supporting slide. The metal water stop is fastened on the door body with countersunk head screws made of the same material. The screw head and the water stop working face are finished together. The "P" shape rubber water stop can also be used for some larger gates.

　　铸铁闸门是以优级铸铁为原料制作的的水利机械产品，它具有良好的耐腐蚀，止水密封好，安装简单，使用寿命厂等特点。产品可分为：PZ平板平面铸铁闸门、封闭式铸铁闸门、镶铜铸铁圆闸门、铸铁圆闸门、PZ机闸一体式铸铁闸门、手提式铸铁闸门、弧形铸铁闸门、高压铸铁闸门、拍门、潮门等产品。我厂可根据用户的需要采用镶铜、不锈钢等方式安装止水。

Cast iron gate is a water conservancy machinery product made of high-grade cast iron. It has good corrosion resistance, good water seal, simple installation and long service life. Products can be divided into: PZ flat cast iron gate, closed cast iron gate, copper inlaid cast iron round gate, cast iron round gate, PZ machine gate integrated cast iron gate, portable cast iron gate, arc cast iron gate, high pressure cast iron gate, flap gate, tide gate and other products. Our factory can install water stop by inlaying copper and stainless steel according to the needs of users.

铸铁闸门规格齐全产品从：0.2x0.2—6.5x6.5m6.5x6.5m米并根据客户需要铸造矩形闸门批量生产销售。铸铁闸门成形后的形状多数为方形、圆形，也有扇形，弧形等。但是在铸造上却有不同的要求，根据客户需要铸造合适的闸门，了解更多产品信息请直接致电或者扫微信进行咨询洽谈，或者留言，荣程水利产品及设备介绍是荣程水利小编整理，请勿转载。

Cast iron gate specification is complete, products from: 0.2x0.2-6.5x6.5m6.5x6.5m, and according to customer needs casting rectangular gate mass production and sales. The shape of cast iron gate after forming is mostly square, round, fan-shaped and arc-shaped. But there are different requirements in casting. For more product information, please call or scan wechat for consultation, or leave a message. The introduction of Rongcheng water conservancy products and equipment is compiled by Rongcheng water conservancy, please do not reprint.
