格栅除污机是荣程水利生产的各种材质格栅中的一种规格格栅，该设备广泛应用于城市污水处理厂、自来水厂、泵站、电厂进水口，自动拦截并水中的漂浮物，保证下道工序的正常运行;也可用作纺织、印染、屠宰、制革、造纸、制糖、酿酒、食品加工中的固液分离。该设备是由ABS工程塑料、尼龙或不锈钢制成的特殊形耙齿，按一定的排列次序装在耙齿轴上形成封闭式耙齿链，其下部装在进水渠水中。当传动带动链轮作匀速定向时，整个耙齿链便自上而下运动，并携带固体杂物从中分离出来，流体通过耙齿间隙去，整个工作状态连续进行。由耙齿的特殊结构形状，使耙齿链携带杂物到达上端反向运动时，前后耙间产生相对自清运动，杂物依靠重力脱落，同时设备后面可设置一对胶板刷，以保证每排耙齿运动此位置时都能彻底的刷净。

　　The grid decontamination machine is a kind of grid of various materials produced by Rongcheng water conservancy. It is widely used in urban sewage treatment plants, waterworks, pumping stations and power plant intakes to automatically intercept and remove floating objects in the water and ensure the normal operation of the next process; It can also be used for solid-liquid separation in textile, printing and dyeing, slaughtering, leather making, papermaking, sugar making, wine making and food processing. The equipment is made of ABS engineering plastic, nylon or stainless steel special shaped rake teeth, which are installed on the rake teeth shaft in a certain order to form a closed rake teeth chain, and its lower part is installed in the inlet channel water. When the transmission drives the sprocket to make uniform orientation, the whole harrow chain moves from top to bottom, and carries solid debris to separate from it. The fluid flows through the clearance of the harrow teeth, and the whole working state is continuous. Due to the special structure and shape of the rake teeth, when the rake teeth chain carries debris to the upper end and moves reversely, there is a relative self-cleaning movement between the front and rear rakes, and the debris falls off by gravity. At the same time, a pair of rubber plate brushes can be set at the back of the equipment to ensure that each row of rake teeth can be thoroughly cleaned when they move to this position.

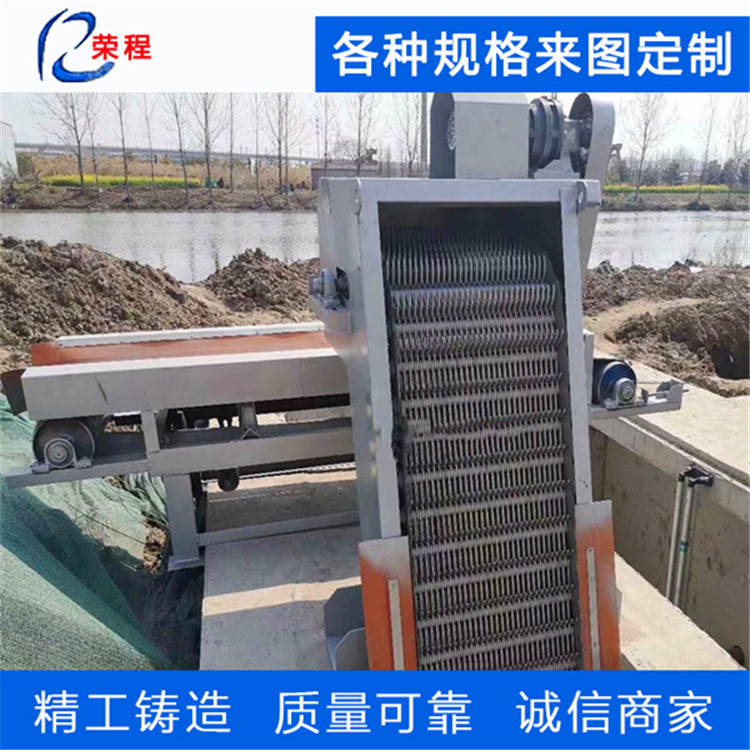

回转式清污机是一种可以连续自动拦截并流体中各种形状杂物的水处理专用设备，可广泛地应用于城市污水处理。自来水行业、电厂进水口，同时也可以作为纺织、食品加工、造纸、皮革等行业废水处理工艺中的前级筛分设备，是目前我国先进的固液筛分设备之一。

　　Rotary cleaning machine is a kind of special equipment for water treatment, which can continuously and automatically intercept various shapes of debris in the fluid, and can be widely used in urban sewage treatment. It is one of the most advanced solid-liquid screening equipment in China, which can also be used as the pre screening equipment in the wastewater treatment process of textile, food processing, papermaking, leather and other industries.

　　回转式清污机是由一种独特的耙齿装配成一组回转格栅链。在电机减速器的驱动下，耙齿链进行逆水流方向回转运动，将漂浮在水面上的浮渣打捞，耙齿链运转到设备的上部时，由于槽轮和弯轨的导向，使每组耙齿之间产生相对自清运动，绝大部分固体靠重力落下。另一部分则依靠清扫器的反向运动把粘在耙齿上的杂物清扫干净。在耙齿链轴上装配的耙齿间隙可以根据使用条件进行选择。当耙齿把流体中的固态悬浮物分离后可以保证水流畅通流过。整个运行可以间隙控制。

　　The rotary trash cleaning machine is a group of rotary grid chains assembled by a unique rake teeth. Driven by the motor reducer, the rake chain rotates in the direction of counter current to salvage the scum floating on the water surface. When the rake chain is transported to the upper part of the equipment, due to the guide of grooved wheel and curved rail, the relative self-cleaning movement occurs between each group of rake teeth, and most of the solids fall by gravity. The other part relies on the reverse movement of the sweeper to clean up the debris stuck on the rake teeth. The rake clearance assembled on the rake chain shaft can be selected according to the service conditions. When the rake teeth separate the solid suspended solids in the fluid, it can ensure the smooth flow of water. The whole operation can be controlled by clearance.

　　该设备的大优点是自动化程度高、分离效率高、动力消耗小、无噪音、耐腐蚀性能好，在无 人看管的情况下可保证连续工作，及其本身设置了机械过载保护装置，在设备发生故障时，剪切销剪断，可以避免设备超负荷工作，损坏设备部件。本设备可以根据用户需要任意调节设备运行间隔，实现周期性运转;可以根据格栅前后液位差自动控制设备的启停;并且有手动控制功能，以方便检修。用户可根据不同的工作需要任意选用。由于该设备结构设计合理，在设备工作时，自身具有很强的自净能力，不会发生堵塞现象，所以日常工作量很少。

　　The major advantages of the equipment are high degree of automation, high separation efficiency, low power consumption, no noise, good corrosion resistance, which can ensure continuous operation in the case of unattended, and it is equipped with mechanical overload protection device. In case of equipment failure, the shear pin is cut off, which can avoid equipment overload and damage to equipment components. The equipment can adjust the operation interval of the equipment according to the user's needs to achieve periodic operation; it can automatically control the start and stop of the equipment according to the liquid level difference between the front and back of the grid; and it has manual control function to facilitate maintenance. Users can choose according to different work needs. Due to the reasonable structure design of the equipment, when the equipment is working, it has a strong self-cleaning ability and will not be blocked, so the daily workload is very small.

控制为用户选用或自备， 在现场接入三相电源即可使用。现场电控箱上采用就地起停控制按钮，现场电控箱上设有设备的启动、停机按钮及启动、停机、事故灯，为节省能耗，所有灯都采用节能型，在电控箱内设有电动机保护器。控制柜可考虑到全厂PLC与电控箱的连接，由电控箱的反映设备运行送至控制室，同时由PLC接到电控箱的控制控制格栅的开停机，本电控箱采用碳钢防腐或不锈钢外壳，室外防雨。

　　The control can be selected or provided by the user, and can be used when three-phase power supply is connected on site. The local start stop control button is used on the field electric control box, and the start stop button, start stop and accident lights are set on the field electric control box. In order to save energy consumption, all lights are energy-saving, and the motor protector is set in the electric control box. The control cabinet can take into account the connection between PLC and electric control box in the whole plant. It is sent to the control room by the reflecting equipment of the electric control box. At the same time, it is connected to the control grid of the electric control box by PLC to control the start and stop of the grid. The electric control box adopts carbon steel anti-corrosion or stainless steel shell and is rainproof outdoor.

　　荣程水利回转式清污机选购指导：Rongcheng water grid cleaning machine selection guide:

　　1、格栅除污机耙齿栅隙分为：1mm、3mm、5mm、10mm、20mm、 30mm、40mm、50mm等各种规格，选型由过水量、高度、固液分离总量和所分离的形状、颗粒大小来选择，同时选配不同的材质。

　　1. The clearance of the rake teeth of the grid trash remover is divided into various specifications: 1 mm, 3 mm, 5 mm, 10 mm, 20 mm, 30 mm, 40 mm, 50 mm, etc. the type selection is selected by the amount of water, height, total amount of solid-liquid separation and the separated shape and particle size, and different materials are selected at the same time.

　　2、设备长短规格设备沟深为1535mm，可根据用户需要及使用实际情况长。特殊规格另行设计。

　　2. The length of the equipment is 1535mm, which can be extended according to the user's needs and actual situation. Special specifications will be designed separately.

　　3、荣程水利生产的回转式清污机主要有304和201不锈钢和碳钢，可以根据客户需要铸造材质的产品，详情孙经理进行技术沟通指导。

　　3. The rotary cleaning machines produced by Rongcheng water conservancy company mainly include 304 and 201 stainless steel and carbon steel, which can be cast according to customers' needs. Manager Sun will provide technical communication and guidance.

选购需提供：Rongcheng water grid decontamination machine purchase needs to provide:

　　1、型号、槽宽、槽深、机架材质、栅隙、齿耙材质、排渣高度、角度、到货等，提供准确数据。

　　1. Model, slot width, slot depth, rack material, grid gap, tooth rake material, slag discharge height, angle, arrival, etc. provide accurate data.

　　2、选型需提供的参数：池子类型，池子的长×宽×高

　　2. Parameters to be provided for type selection: pool type, length × width × height of pool

　　3、提供：电机功率，叶轮直径，是否需要安装，1型手提式或型手摇葫芦型安装(注明安装材质)。

　　3. Supply: motor power, impeller diameter, whether need to install, type 1 portable or hand hoist type installation (indicate installation material).

　　4、格栅除污机主要由拦污栅体，回转齿耙，驱动传动机机构，过载保护机构和不锈钢牵引链条等。

　　5、荣程水利格栅除污机,格栅清污机,回转式清污机材质主要有304个201不锈钢碳钢，根据客户需要铸造材质，详情孙经理进行技术沟通指导。

　　5. Rongcheng water grid cleaning machine, grid cleaning machine and rotary cleaning machine are mainly made of 304 201 stainless steel carbon steel. According to the needs of customers, the casting materials are made. Manager Sun will give technical communication and guidance.

　　选购须知：本设备可以根据用户需要任意调节设备运行间隔，实现周期性运转;可以根据格栅前后液位差自动控制;并且有手动控制功能，以方便检修。用户可根据不同的工作需要任意选用。由于该设备结构设计合理，在设备工作时， 自身具有很强的自净能力，不会发生堵塞现象，所以日常工作量很少。欢迎致电13582492022孙经理进行技术沟通指导。

　　Notice for purchase: the equipment can adjust the operation interval according to the user's needs to achieve periodic operation; it can be automatically controlled according to the liquid level difference between the front and back of the grid; and it has manual control function to facilitate maintenance. Users can choose according to different work needs. Due to the reasonable structure design of the equipment, when the equipment is working, it has a strong self-cleaning ability and will not be blocked, so the daily workload is very small. Welcome to call manager Sun at 13582492022 for technical communication and guidance.
