 Steel grating plate is a kind of steel products which is made of flat steel and cross arranged with cross bars according to a certain spacing, and welded into a square grid in the middle. It is mainly used for making ditch cover plate, steel s****ucture plat**** plate, steel ladder step plate, etc. the cross bars are generally made of twisted square steel.

""

  The steel grati...

INQUIRY

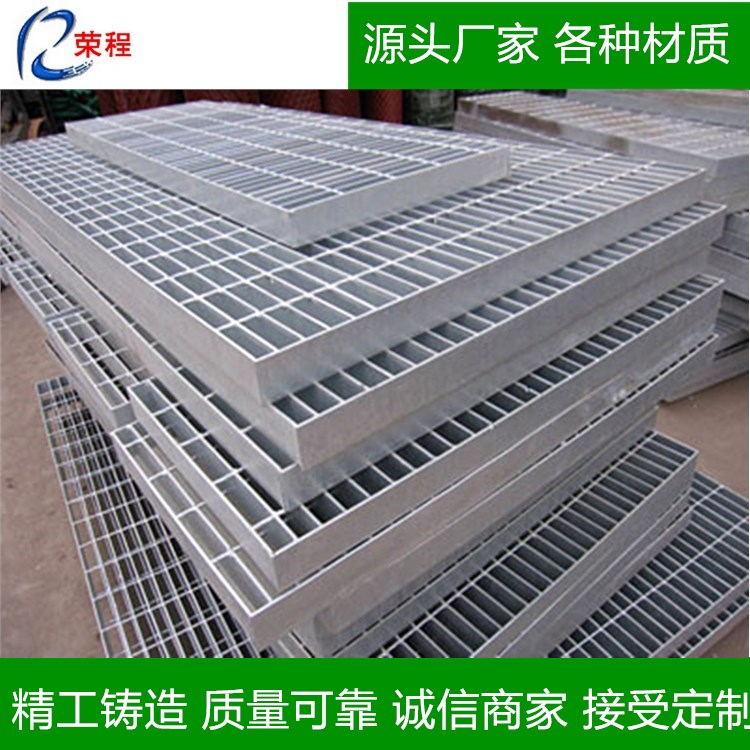

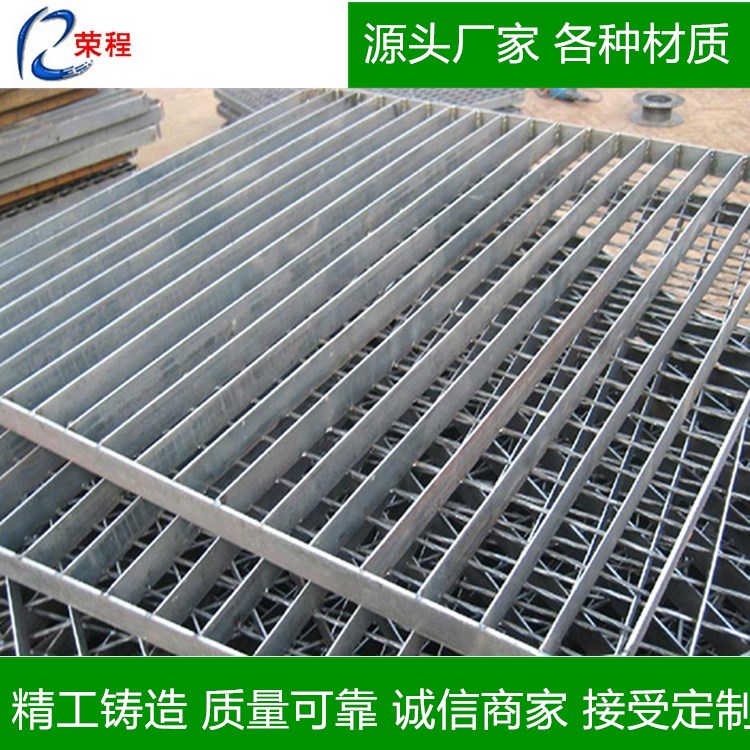

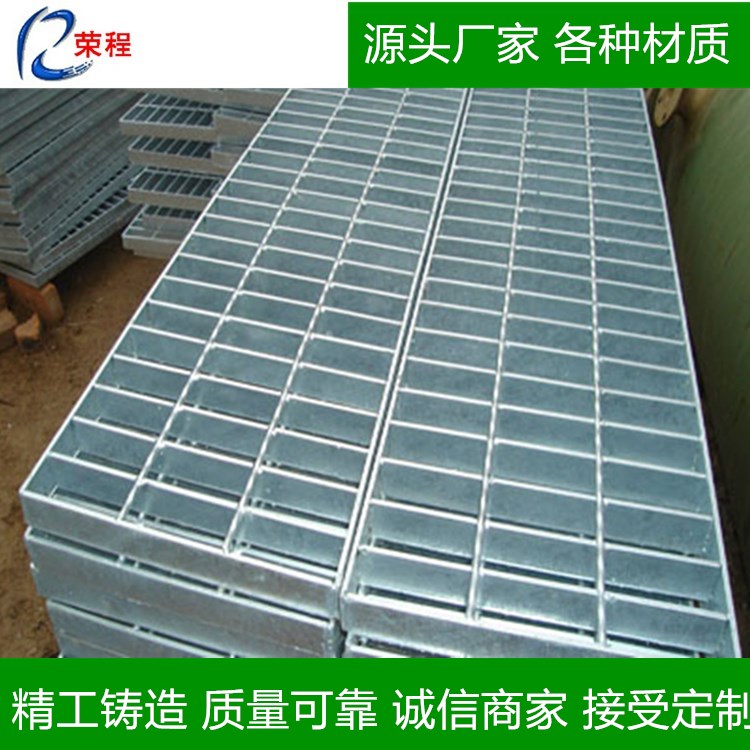

 Steel grating plate is a kind of steel products which is made of flat steel and cross arranged with cross bars according to a certain spacing, and welded into a square grid in the middle. It is mainly used for making ditch cover plate, steel structure platform plate, steel ladder step plate, etc. the cross bars are generally made of twisted square steel.

  The steel grating plate is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating plate has ventilation, lighting, heat dissipation, anti-skid, explosion-proof and other properties.

  According to the welding method can be divided into: pressure welding type, embedded type, through lock type and through welding type

  According to the shape of the side surface of the load flat steel, it can be divided into plane type, tooth type and I-shape

  According to its use can be divided into: general purpose steel grating plate and special purpose steel grating plate, such as: trench cover plate, step plate and so on.

  According to the material, the steel grating plate is divided into stainless steel grating plate and carbon steel grating plate

  Product features:

  1: High strength, light weight

  2: Strong corrosion resistance, durable

  3: Beautiful appearance and glossy surface

  4: No dirt, no rain, no snow, no water, self-cleaning, easy maintenance

  5: Ventilation, lighting, heat dissipation, anti-skid, good explosion-proof

  6: Easy to install and disassemble

  Rongcheng grid is widely used in petrochemical, electric power, tap water, sewage treatment, port and wharf, architectural decoration, shipbuilding, self-propelled parking lot, municipal engineering, environmental sanitation engineering and other fields, such as platform, walkway, trestle, ditch cover, well cover, ladder, fence, etc.

  Rongcheng ordering Guide: under normal circumstances, the center spacing of flat steel is divided according to series: Series 1 is 30mm, series 2 is 40mm, series 3 is 60mm, the spacing of cross bar: Series 1 is 50mm, series 2 is 100mm.

  Specification of hot dip galvanized steel grid plate:

  Flat steel: made of Q235 or stainless steel, it has ordinary plane type, anti-skid tooth type and section I type, and the general specifications are 20 * 5, 25 * 5, 30 * 3, 32 * 5, 40 * 5, 40 * 3, 50 * 5, 65 * 5, 100 * 8, 100 * 10, etc.

  Cross bar: it is made of twisted square steel, which is the same material as flat steel. It is made of disc by cross drawing and twisting. Its common specifications are 5 * 5, 6 * 6, 8 * 8, etc.

  Regular specifications: 303 / 30 / 100, 325 / 30 / 100, etc.

  Rongcheng grid features: strong grid pressure welding structure makes it have high load-bearing, structure, easy lifting and other features, beautiful appearance, durable, hot-dip galvanizing surface treatment makes it have good anti-corrosion ability, beautiful surface luster, ventilation, lighting, heat dissipation, explosion-proof, good anti-skid performance, anti dirt.

  Grille material can be made into (302, 304, 304L, 316, 316L and other materials) stainless steel, Q235 carbon steel to meet the different needs of different customers, welcome to customize, to learn more product information, you can pay attention to this website product catalog, you can call directly, you can leave a message or scan wechat for consultation and negotiation, welcome to purchase.
